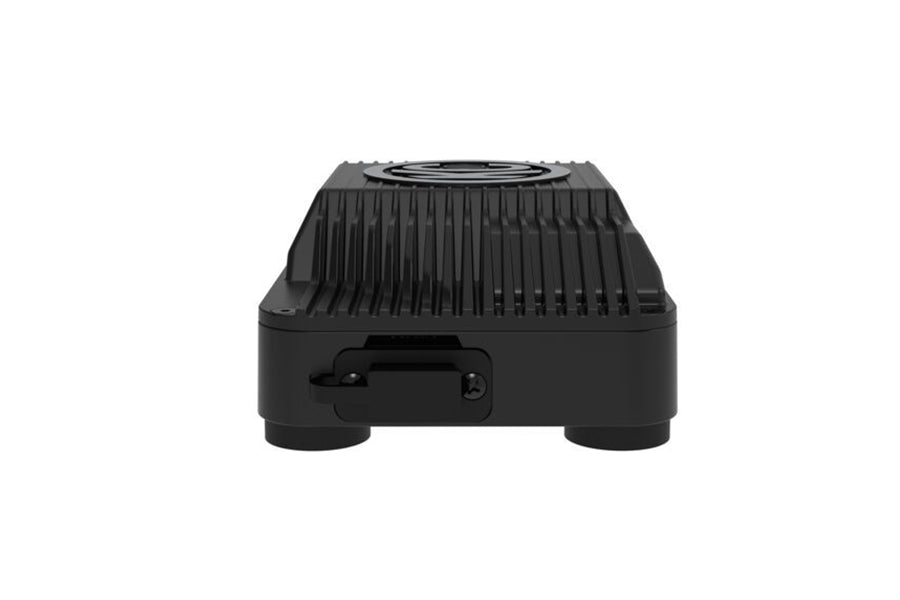

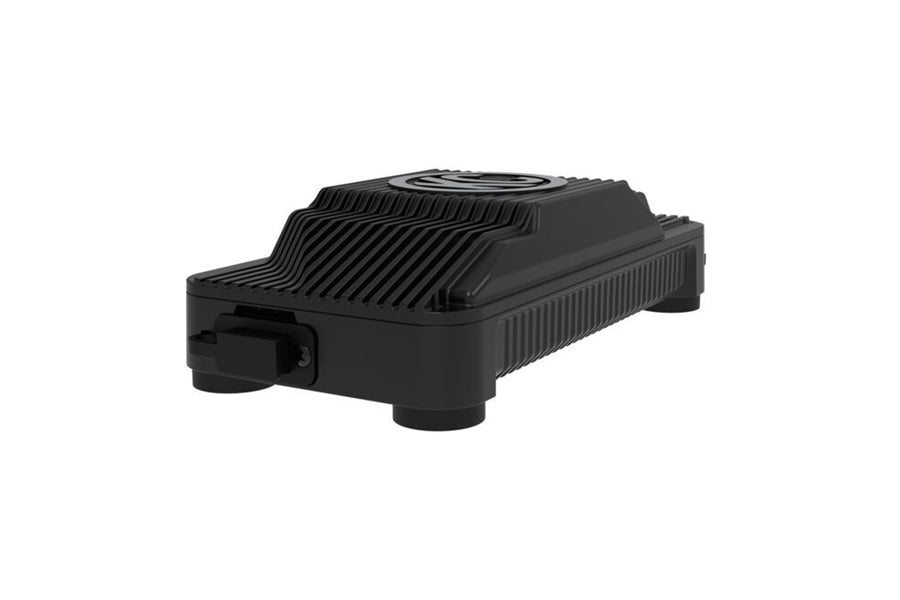

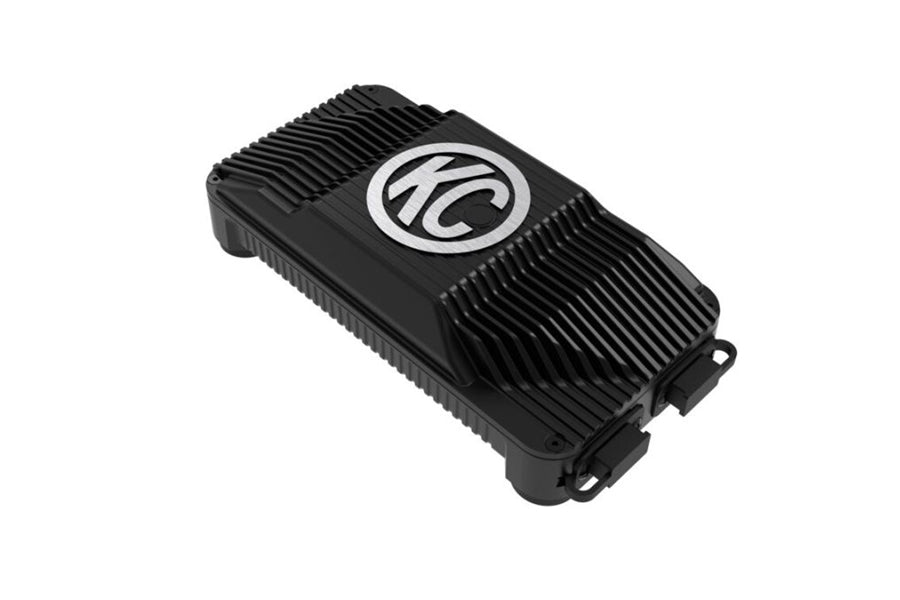

KC HiLiTES Solar Charge Hub

A battery that sits in a parked truck all week, or a fridge and lights pulling it down at camp, needs charging without a generator. A solar panel needs a controller between it and the battery.

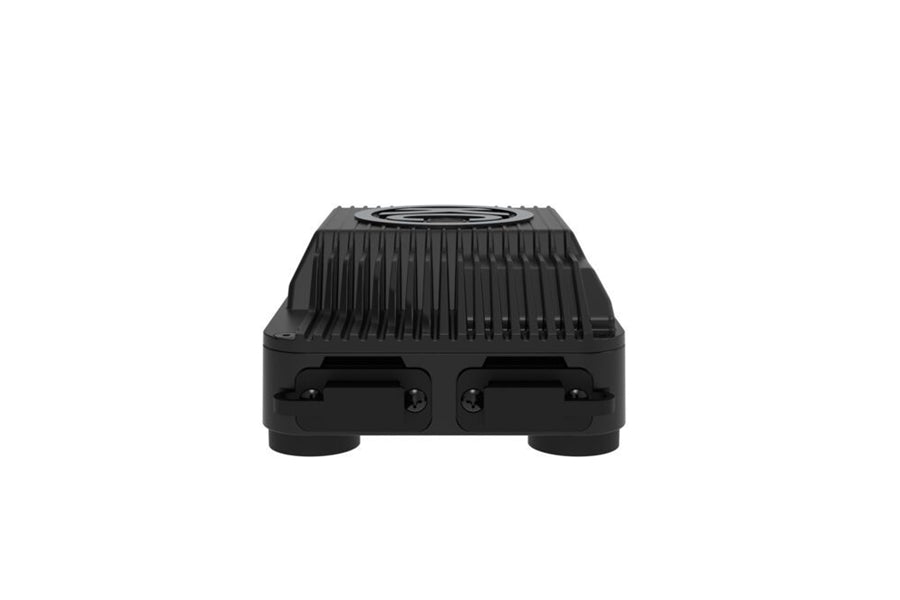

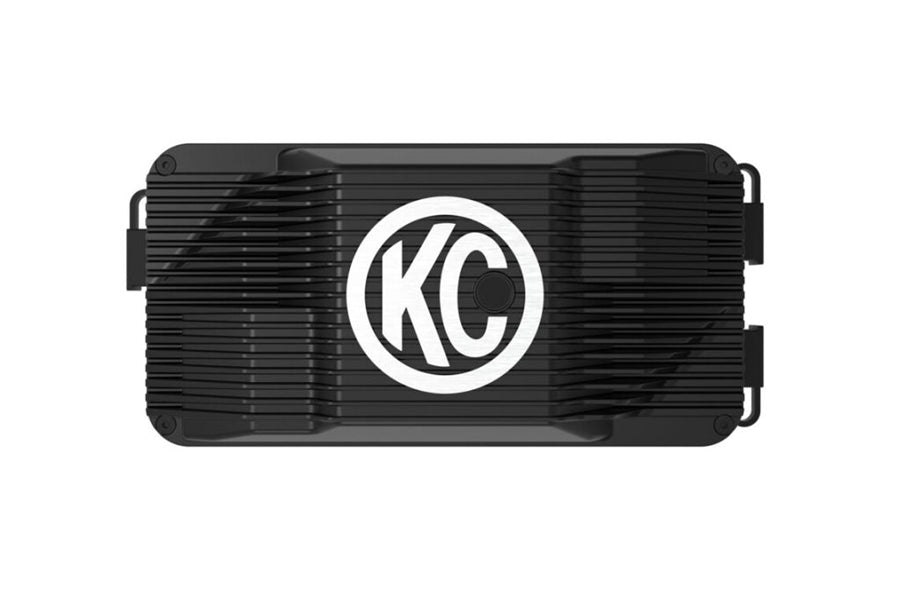

The KC Solar Charge Hub is a plug-and-play controller that charges and maintains 12V or 24V batteries from solar panels, including lead acid, AGM, gel, deep cycle and lithium types. It also lets you use the vehicle battery as a charging hub for phones and laptops, disconnects the load automatically to prevent over-discharge, and reports over Bluetooth. Connect the panel kit, connect the battery kit, and let it charge.

Key Features

• Plug-and-play solar charging for 12V and 24V batteries (auto-select)

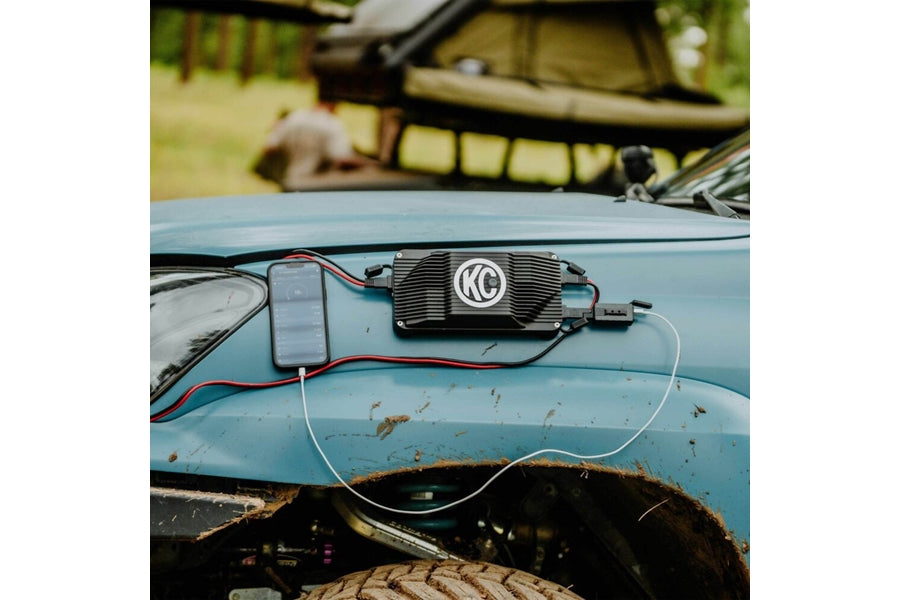

• Use the vehicle battery as a power bank
• Automatic load disconnect prevents over-discharging
• Built-in Bluetooth for wireless monitoring and control

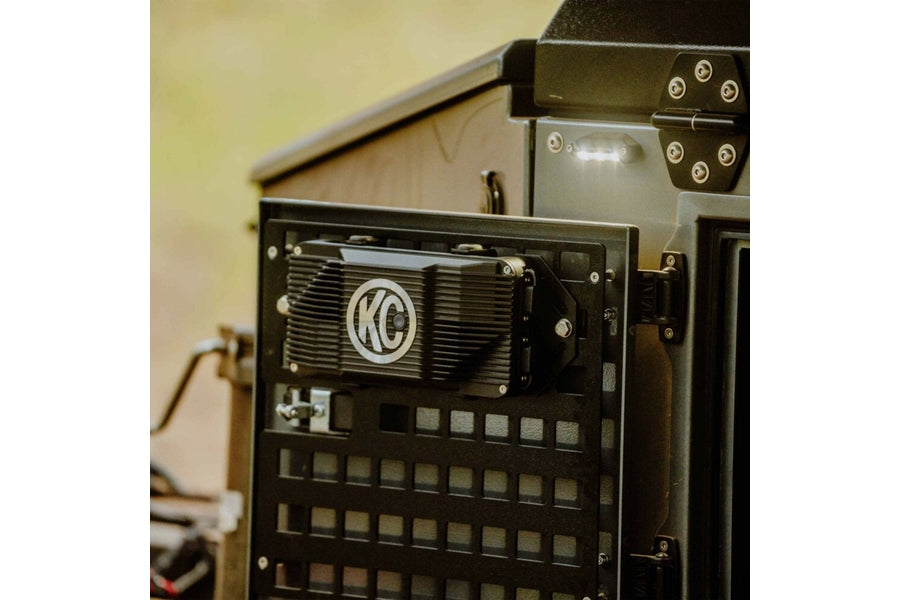

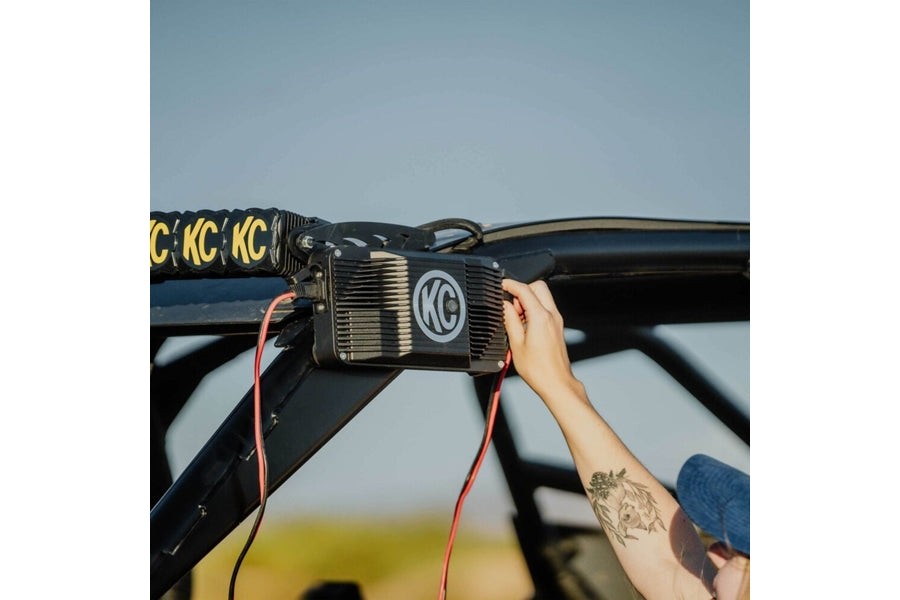

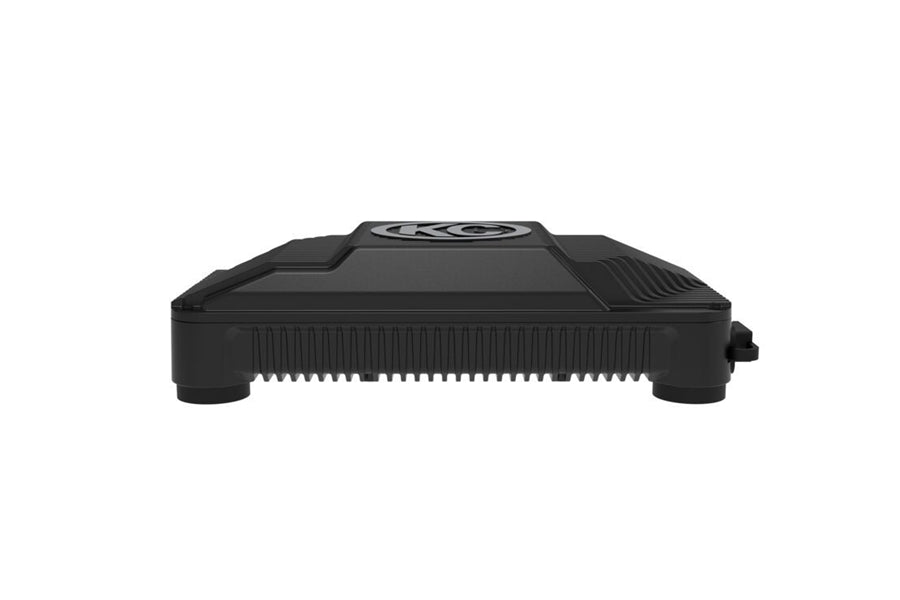

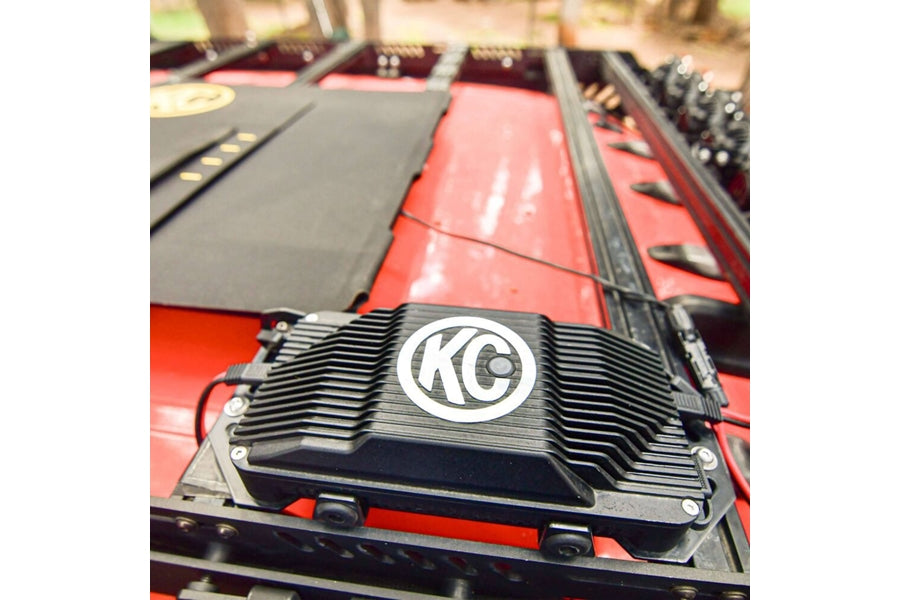

• Rubber-coated removable magnetic feet for portable mounting
• Works with lead acid, AGM, gel, deep cycle and lithium batteries

Specifications

• Battery voltage: 12V / 24V (auto-select)
• Max PV open voltage: 75V
• Max PV short circuit current: 15A
• IP rating: IP67
• Shipping weight: 8.5 lb
• Shipping carton: 12.25 x 5.25 x 7.31 in

In the Box

• 1 Solar Charge Hub
• Solar panel connection kit: 1 10 ga 1 ft MC4 to SAE; 2 10 ga 20 ft SAE to SAE extensions
• Battery connector kit: 1 10 ga 2 ft 8mm ring terminal to SAE with 20A fuse; 1 10 ga 2 ft alligator clips to SAE with 20A fuse

MPN 5000 · UPC 084709050009
